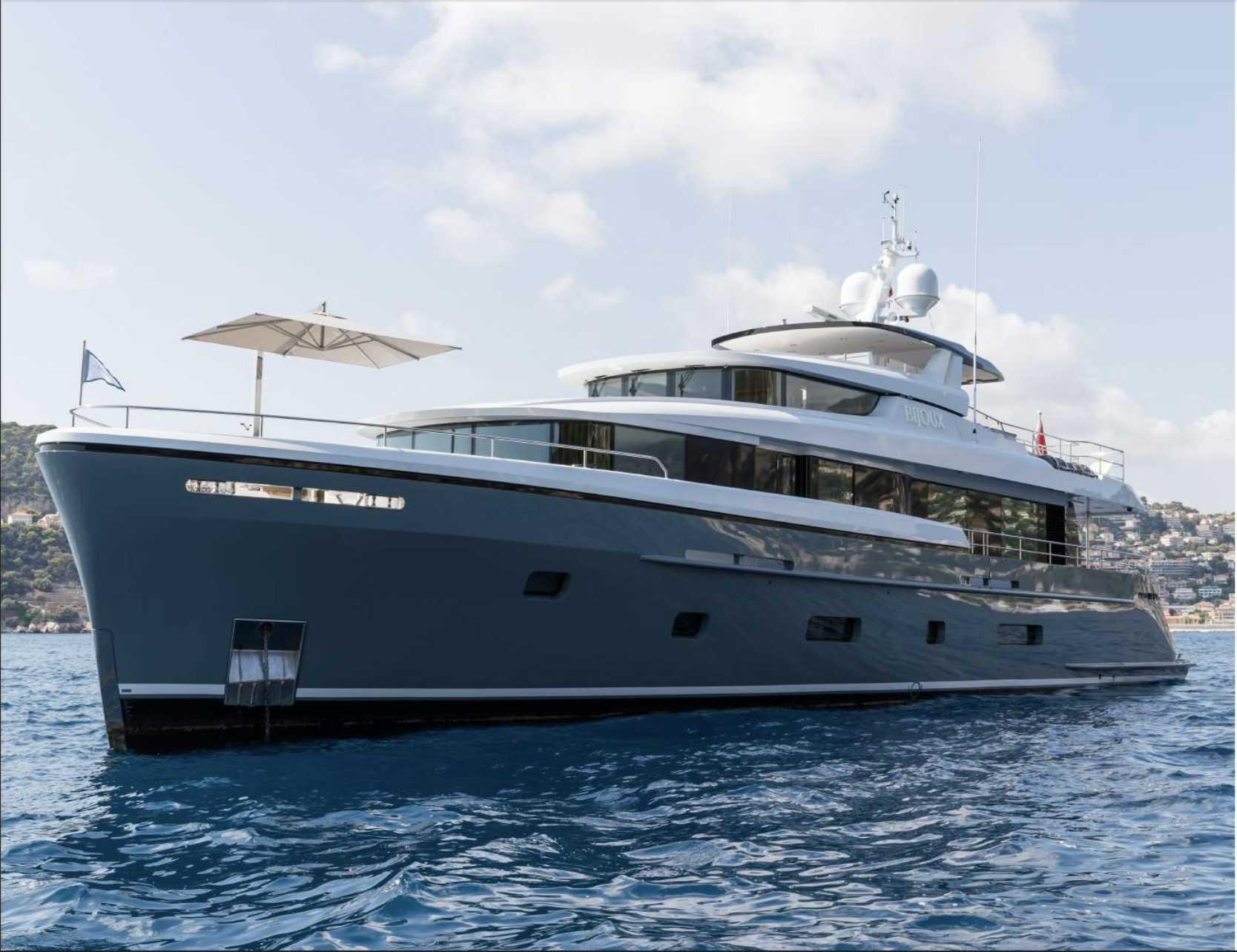

Moonen Yachts Matica Bijoux II
7.490.000
Moonen Yachts Matica Bijoux II
Pure Luxury, global reach.
With the Moonen Yachts Matica BIJOUX II you get the unique opportunity to acquire a like-new superyacht with the highest quality standards, pure comfort and global reach. She was built with a strong but lightweight hull made of high-strength steel and superstructure made of aluminum and equipped by the owner with all imaginable options needed for worldwide cruising.
Entering the vessel via the port side passerelle, you enter the spacious aft deck with comfortable seating for up to 10 people and stairs to the port side sundeck. Towards the stern, a wide, comfortable staircase leads down to the very large (approx. 20 sqm) bathing platform, which is equipped with a built-in rain shower and water stairs.
Entering the yacht’s interior, you are welcomed through the electrically operated and silent sliding door into a spacious salon with large panoramic windows on both sides.
Forward of the salon is a dining area that comfortably seats up to 10 people. Forward of the galley to port is the large kitchen, equipped with a full complement of Miele and Gaggenau kitchen equipment. From the galley, a staircase leads down to the spacious crew area with seating for 5 crew members, a captain’s cabin (double bed) and 2 additional double cabins for a total of 5 crew members.
From the main deck, a passageway on the starboard side leads to the guest accommodations. From here, the passageway continues forward to the VIP cabin with wrap-around windows offering panoramic views and an en-suite bathroom. The guest staircase leads to the guest lobby, which is equipped with its own refrigerator – perfect for a midnight snack or cold drink without disturbing the crew. Aft is the owner’s stateroom, which is incredibly spacious for a yacht of this size, utilizing the entire width of the yacht. A super king size bed is located in the center, with the owner’s bathroom and a work area with desk to the sides.
Also due to its location forward of the engine room, enormous efforts were made by the shipyard to completely isolate the owner’s cabin from all noise and vibration. With truly impressive results of less than 50 dBA in this area, even at full cruising speed – exceptional for a yacht of this size and more in line with a 60-meter yacht. Forward of the owner’s cabin are 2 double guest cabins, both with full Pullman berths, so the yacht can accommodate a total of 10 adult guests at full complement. One of the twin cabins can be converted into a double cabin with little effort, giving the yacht flexibility depending on the number of guests.
Climbing the stairs to the main deck, another staircase leads to the raised cockpit with bench seating. Another staircase leads to the sundeck with a large covered seating area to starboard and a bar, ice machine and service area to port. Aft of the main seating area is another seating area with a table that can be electrically lowered into a large square sun lounger if needed. Additional sun loungers are located on the deck behind this area, spacious and unobstructed by the 4.5 meter long dinghy that is housed in the garage, allowing this area to be fully used by guests at all times.
PROFILE
Built
2016
(Interior Refit 2019)
Length
29,90 m
Beam
7,00 m
Location
France
Technical Data
OUTLINE
2016 (Refit Interior 2019)
Moonen Shipyards BV
Matica
France
29,90 m
7,00 m
2,10 m
198.000 kg
Grade-A Steel
Shaft Drive
2 x 600 hp CAT C18 ACERT DITA
2.600 (July 2020)
24.000 l
5.000 l
4
3
Moonen Yachts Matica Bijoux II
EQUIPMENT
ON BOARD
GENERAL
- TRANSMISSION: Two-disc gearbox 5135 SC
- PROPELLER: Five blades with fixed blade position
- RUDDER: Spade rudder with NACA-shaped cross-section
- CONTROL : Double pushrod system (2 x 35° angle)
- EMERGENCY CONTROL :Manual helm in the lazarette
- CONTROLS: Bosch Rexroth Marex OSII electric controls at each control station for the speed of the main engine and transmission
- CONTROL STATIONS: on bridge, sundeck and aft deck, both engines can be synchronized
- GENERATORS: 2 x 40kW generators
- GENERATOR HOURS: 4,000 hours as of July 2020
- SHORE POWER: 400V 63A / 1 6mm2 cable, length 25m
- TRANSFORMATOR: Magnus Marine Air-cooled SP100 50kVA system including ‘Clean Net’ system to control power fluctuations & automatic power management system for worldwide shore power use Input: 3 phases 400V / 50Hz.Output: 3 phases 400 / 230V /50H
- DC / AC INVERTER 24VDC into 230V from Sine Wave 2500 system supplying 230V-50Hz on board from service battery.
- MAIN PANEL 400V distribution system
230Vac distribution
24Vdc distribution (service)
24Vdc distribution (emergency) - BATTERIES 2 x 24V-100Ah sets – start of main engines/generators 1 x 24V-400Ah service set for navigation lights, auxiliary circuits etc. 1 x 24V-600Ah set emergency for navigation/emergency lights, radio 1 x reserve radio (GMDSS) 24V-85Ah
- CHARGING KITS 1 x For service battery in ER – 24VDC-100A capacity 2 x For starting batteries in ER – 24VDC-15A capacity 1 x For emergency battery – 24VDC- 100A capacity
1 x For radio battery (GMDSS) – 24VDC- 15A capacity - STABILIZERS CMC electric fin stabilization system at zero speed and while underway.
- BOWTHRUSTER 40kW twin propeller, operable from all stations
- HYDRAULIC SYSTEM With PTO hydraulic pumps
- Mediterranean style AIR CONDITIONING SYSTEM (with chilled water cooling system) Controls in each cabin, dedicated unit for AV rack. Instant switching between heating and cooling functions
- AIR COMPRESSOR Compressed air taps in engine room, garage and foredeck
- VENTILATION 2 x vents (inlet and outlet) with fire dampers and splash guards
- FRESH WATER SYSTEM Two UV filters, automatic dosage
- WATERMAKER Idromar with a maximum capacity of 6.500 l/day
- WATERMAKER hours 1.400 hours starting July 2020
- WATER SYSTEM Hamann Super Mini Plus treatment system (MARPOL compliant 2016)
- HOT WATER 2 x boilers in carbon filter with external electric heater and UV sterilizer, installed after pump in ER
- PUMPS: 2 x bilge pump in lazarette, also for fire fighting (1 x in engine room, 1 x emergency pump).
2 x main engine cooling pumps, used as direct emergency bilge for the engine room
1 x water circulation pump
8 x underwater lights installed aft in a U-shape around the stern - Marine Growth Preventer System (MGPS) installed to protect piping and other systems that use seawater
- ALFA LAVAL Alfa Laval MB 303 fuel purification system
- Tender refueling station in the lazarette for quick and easy refueling of the tender
- OIL WATER SEPARATOR IMO/Marpol approved oil separator to separate clean and dirty water in the bilges, discharge the clean water over the ship’s side and retain the dirty water in the dirty oil tank for safe and environmentally friendly disposal
NAVIGATION EQUIPMENT
- MONITORING SYSTEM: Maritime Personal Assistant (MPA), remotely controlled; Tijssen M&C system. Electro (Holland), distributed throughout the yacht with touch screen control stations in the engine room, bridge and crew mess. All units are interconnected via a LAN network. All major systems can be monitored and controlled from multiple locations. Remote diagnostics possible
- LIGHTING: Aqua Signal navigation lighting (type 55), interior lighting by Biticino Living
- AUTOMATIC PILOT: Simrad, controls on bridge, sundeck and aft deck AIS Simrad NAIS400 Class B
- BNWAS bridge navigation watch alarm system
- CHARTPLOTTER: Simrad NSO Evo2 black box system that currently works with Navionics charts but is also compatible with several other providers; the system displays 2 separate screens simultaneously
- CAPTAIN CABIN: Simrad NSE display (plotter & radar) can be programmed to alarm on anchor drift, high wind, high/low depth and other alarms
- GAUGES: 1 x set of three chrome plated brass nautical gauges; barometer, water temperature and clock.
- Ship’s bell: 1 x cast bronze chrome (diameter 300 mm) mirror polished brass/chrome bell holder with deck lighting on foredeck
COMMUNICATIONS EQUIPMENT
- USAT30 satellite internet & VOIP lines x 2
- VHF Bridge, Sun Deck, Crew Mess
- SAT C New generation, PC-based system with “Easymail” IRIDIUM satellite phone
- MF/HF radio Sailor 6310
- IT NETWORK Pepwave unit for Wifi, 4G, 3G & satellite internet access, additional landline options installed in all cabins
DECK EQUIPMENT
- ANCHOR WINDS: 2 x Muir VRC 4500 electric on foredeck.
- BOLLARDS 8 x steel double bollard combinations
- CAPSTANS aft 2 x Muir VC2500 between bollards, aft
mooring lines 6 x mooring lines Ø 24mm, length 25 m
1 x mooring line Ø 24mm, length 50 m
10 x fenders – 8 x type F7 cylindrical;
2 x type 5 ball - ANCHORS 2 x 125kg galvanized steel balanced
Pool-N, in anchor pockets - ANCHOR CHAINS 2 x 14mm galvanized steel short links, stowed in a chain well (protected with hardwood decking) in the forepeak, accessible via a deck hatch
- BOAT CRANE & DAVITS Hydromar boom crane for dinghy launching
- PASSERELLE Hydromar 3-part telescopic passarelle
- SWIMMING POOL Removable stainless steel and teak steps
- SIDE ENTRANCE Gangway Removable aluminum
- SWIMMING PLATFORM Folding 20 sq. ft. swimming platform, with hydraulic shock absorbers Stanchions for a rope railing around the platform Stainless steel hot and cold water shower and swim ladder
- TENDER WHIPS 1 x set of tender whips, attachment points, port and starboard side of hull UMBRELLA / PARASOL Large stainless steel umbrella, can be mounted on port or starboard side of foredeck
- COVERS Full waterproof covers for all cushions, tables and umbrellas
ENTERTAINMENT ELECTRONICS
- SATELLITE TV Can display all satellite TV packages, including Sky TV INTERNET TV E3 systems IPTV ± displays all major UK channels via an internet connection, including BBC, etc.
- BLUETOOTH Allows music playback from guest phones and other Bluetooth media with dedicated control stations and speakers on the forward deck, sundeck, aft deck, main salon and all guest cabins
- GUEST CABINS Samsung flat-panel TVs with OPPO control system for DVD (including Blu-ray), TV, or HDMI
GALLEY & LAUNDRY EQUIPMENT
- GALLEY Miele convection oven (extra wide / suitable for whole fish) Gaggenau multi-zone induction cooktop
- Gaggenau cooker hood
- Miele microwave oven
- Miele refrigerator
- Miele freezer
- Miele dishwasher
- BILGE 2 x Miele refrigerator
- Miele freezer
- 2 x CaterCool wine refrigerators ± 24 bottles
- Extensive storage space for food, beverages and spare parts GUEST LOBBY Miele washer/dryer (combi)
- PANTRY Miele washer and dryer ZipWater dispenser (boiling and chilled water)
- SONNENDECK Isotherm beverage refrigerator
- Oshizaki ice machine
- Teppanyaki BBQ grill plate
- Electric table legs, can be lowered as a sun lounger or folded up as a 2nd table Bluetooth music system
- Wet bar with sink and food preparation area
SAFETY EQUIPMENT
- 4 x Eight-person life rafts with SOLAS A-pack in a GRP container on the upper deck sides, connected with hydrostatic releases
- 4 x lifebuoys on superstructure in a recess (2 x with MOB lights, 2 x with floating lines)
- Stainless steel latch bracket at bow, for 50 x 70 cm flag
- 2 x 2.25 m aluminum telescopic boat hooks
- 2 x retractable black signal balls
- 1 x SART & 1 x EPIRB
- 2 x fire extinguisher BA-SETS, plus 4 additional bottles
- 5 x rocket flares
- 1 x Jason’s Cradle for MOB recovery
- 1 x Defibrillator
- 1 x Foldable Emergency Stretcher
FIREFIGHTING
- NOVEC fire extinguishing system in engine room
- Free standing fire extinguishers in accommodation areas as per regulations
SAFETY
- Remote alarm monitoring; a text alarm system can immediately notify the crew of any alarm when the vessel is unmanned in port
- Intrusion alarm in case the vessel is unmanned in port
- 4 x cameras with tilt/swivel/zoom functions (1 x ER; 2 x side deck/aft deck, 1 x sun deck)
- 2 x A4 size safes (1 x owner’s cabin, 1 x captain’s cabin)
TENDER & WATERSPORTS EQUIPMENT
- TENDER 1 x Williams Turbojet 505 (200 hours August 2018) 8 people, 5.05m long x 1.10m high with bimini spray roof.
- Yanmar 110hp diesel inboard engine
- WATER SPORTS (ALL BRAND NEW 2016)
- 1 x Jobe ‘Banana
- 2 x Jobe Donuts
- 1 x Jobe 3 man inflatable boat
- 2 x Red Ride SUP paddle boards
- 1 x MiniCat Emotion inflatable sailing catamaran
- Water skis & monoskis
- 2 x Wakeboards
- 5 x fishing rods & 2 x hand fishing lines
- 5 x life jackets
- 5 x life jackets
- 5 x snorkel & mask sets
- 5 x fins / flippers
- Diving compressor ± Bauer junior
